Other tools for the exchange of electrolytic capacitors in the world receiver SONY ICF SW7600
I got into the hands an old but very good world receiver SONY ICF SW7600. Did not work as I expected so I was looking on the internet about this radio.
I found it necessary to replace all electrolytic capacitors.
But the problem was to order all capacitors with the correct parameters such as size and value. As I have skipped all this, I give you a help.
All perfect documents and howto is available at Stephan Großklaß SONY ICF SW7600 pages Thanks Stephan!
I only added what suited me during repairs.

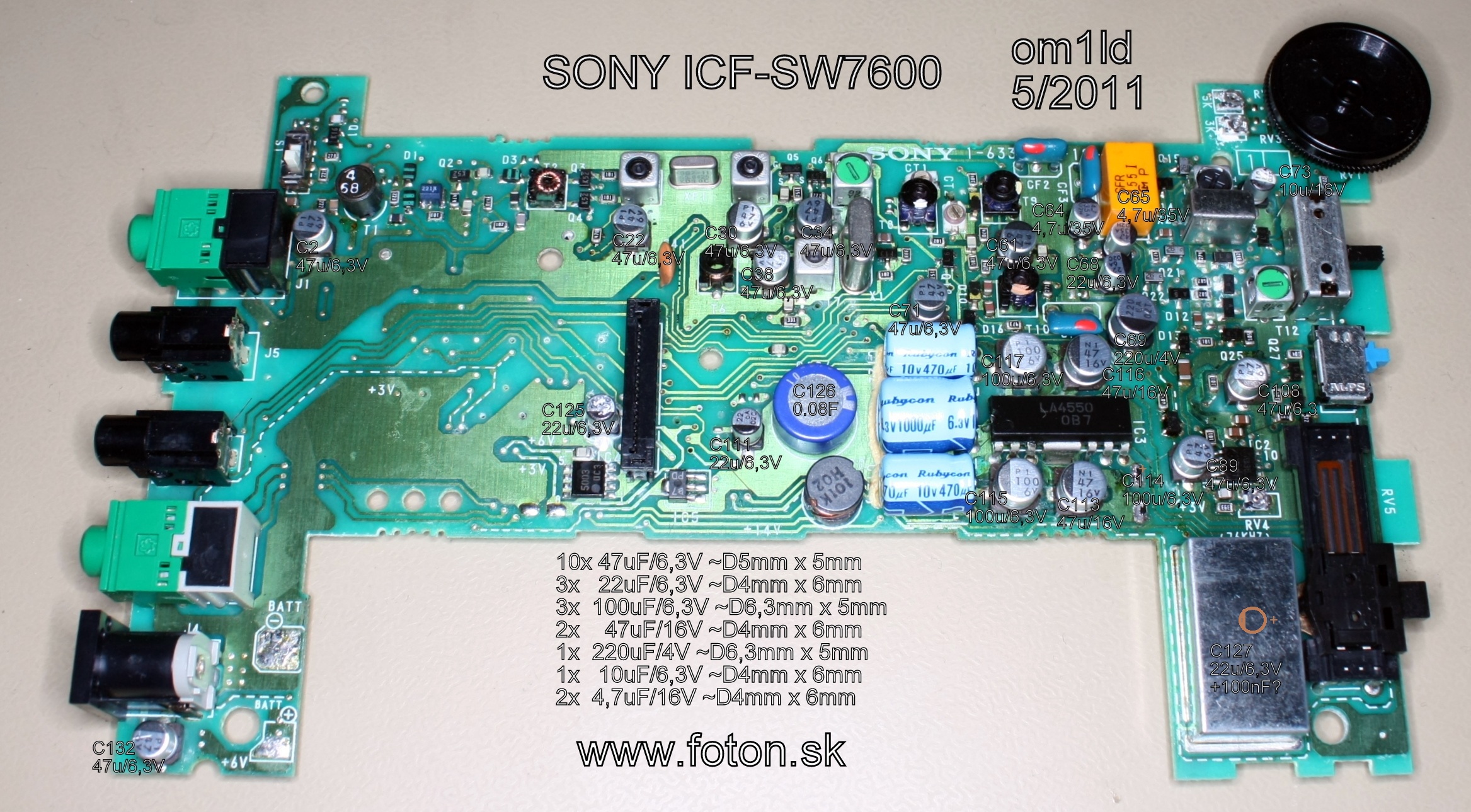

Here is a order table for caps Packages of caps is correct. The order is with minimal qty. Full price with shippment is 20,78Euro. It is not cheap, but all types are in one order.
Package alternative
200uF/4V is 200uF/6,3V
47uF/16V is 47uF/35V
